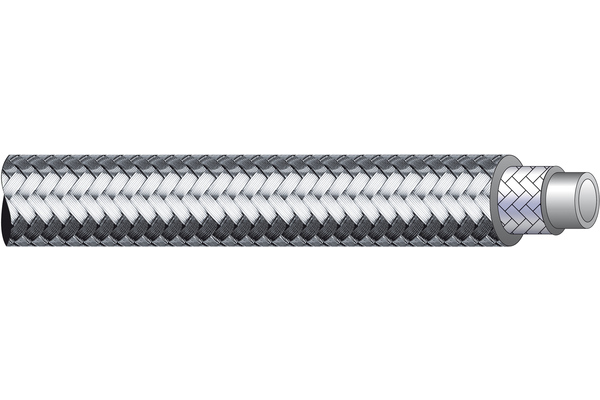

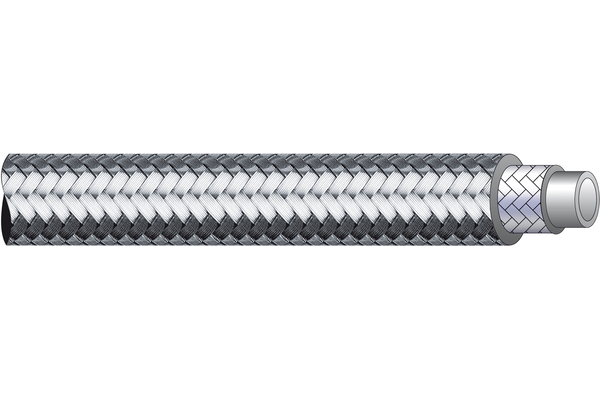

Double Braided Hose TEF5H (smooth inner liner)

Flexible pressure hose/teflon hose for applications in hydraulics and for the usage with aggressive, hot and cold fluids

To accessories

Detail

Art. No.

TEF5H06

TEF5H08

TEF5H10

TEF5H12

TEF5H16

TEF5H20

TEF5H25

Size

Inch

1/4

5/16

3/8

1/2

5/8

3/4

Outer Ø [mm]

11,4

13,2

15,7

18,7

21,7

25,5

31,2

bending radius [mm]

102

120

152

178

203

305

working pressure [bar]

300

270

230

190

162

125

100

burst pressure [bar]

1200

1080

920

760

650

500

400

Safety factor

4:1

Standard ferrule

XV04P3W

XV05P3W

XV06P3W

XV08P3W

XV10P3W

XV12P3W

XV16P3W

Weight [kg]

0,28

0,3125

0,435

0,53

0,8

0,835

1,2

Quantity

Product info

Specifications

Color inner tube:	white
Inner tube:	Smooth, seamless extruded tube of PTFE
MSHA-Approval:	no
Media:	media compatibility on request
Reinforcement:	Double stainless steel wire braid (AISI 304 / 1.4301)
Temperature range [°C]:	- 60 ° C to + 260 ° C; Resistance on request (technik@indunorm.de)
application:	Highly flexible delivery hose for applications in hydraulics and the use of aggressive and hot or cold liquids
max operating temperature [°C]:	+260
number of layers:	2

Benefit

"Very high operating pressures at proven advantages of PTFE tubing technology. As a problem-solving hose in the foundry industry applicable."

Accessories

Fittings from the XV universal series (also available in stainless steel).

Practical tip

When using our special ferrules the usual masking of the dividing line with fabric tape can be dispensed. However, the ends should be secured during storage so that damage to the inner layer is prevented. By this method no danger to personnel is obtained.
