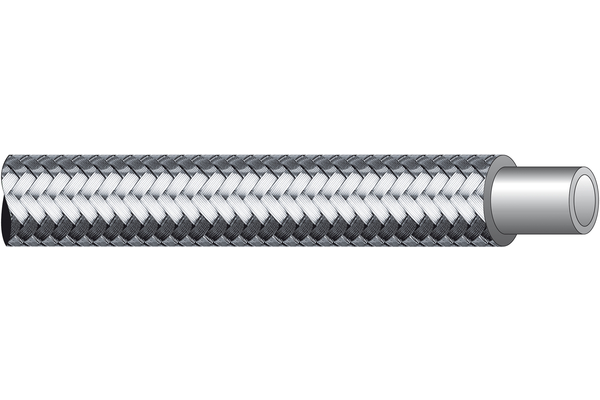

TEF2H (thick, smooth inner liner)

Flexible pressure hose/teflon hose for applications in hydraulics and for the usage with aggressive, hot and cold fluids

To accessories

Detail

Art. No.

TEF2H06

TEF2H08

TEF2H10

TEF2H12

Size

Inch

1/4

5/16

3/8

1/2

Outer Ø [mm]

10,2

11,7

14,2

17,2

bending radius [mm]

102

127

152

working pressure [bar]

172

155

138

120

burst pressure [bar]

690

621

552

483

Safety factor

4:1

Standard ferrule

XV04P3W

XV05P3W

XV06P3W

XV08P3W

Weight [kg]

0,128

0,139

0,25

0,257

Quantity

Product info

Technical data

Color inner tube:	white
Inner tube:	Smooth, seamless extruded tube of PTFE
MSHA-Approval:	no
Media:	media compatibility on request
Reinforcement:	1 stainless steel wire braid (AISI 304 / 1.4301)
Temperature range [°C]:	- 60 ° C to + 260 ° C; Resistance on request (technik@indunorm.de)
application:	Highly flexible delivery hose for applications in hydraulics and the use of aggressive and hot or cold liquids
max operating temperature [°C]:	+260
number of layers:	1

Benefit

Due to the greater wall thickness of the PTFE inner layer compared to TEF1H: Better kink resistance, higher operating pressures, longer service life when used with abrasive media.

Accessories

Fittings from the XV universal series (also available in stainless steel).

Practical tip

When using our special ferrules the usual masking of the dividing line with fabric tape can be dispensed. However, the ends should be secured during storage so that damage to the inner layer is prevented. By this method no danger to personnel is obtained.
