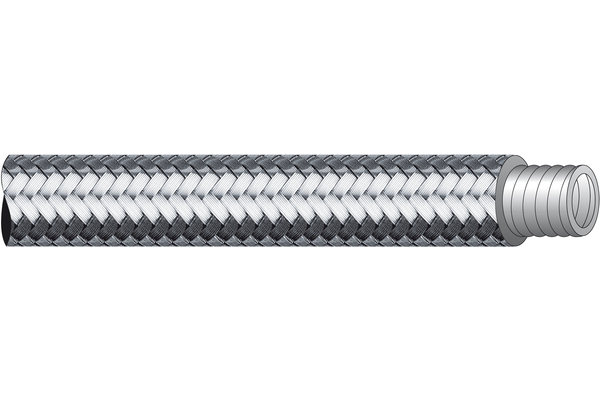

Curled Hose TEF3W-H

Highly flexible pressure hose/teflon hose for applications in hydraulics and for the usage with aggressive, hot and cold fluids

To accessories

Detail

Art. No.

TEF3W06-H

TEF3W08-H

TEF3W10-H

TEF3W12-H

TEF3W16-H

TEF3W20-H

TEF3W25-H

TEF3W32-H

TEF3W40-H

Size

Inch

1/4

5/16

3/8

1/2

5/8

3/4

1.1/4

1.1/2"

Outer Ø [mm]

11,6

13,5

15,9

19,7

23,3

26,8

33,4

41,3

49,0

Inner Ø [mm]

38,9

bending radius [mm]

110

152

working pressure [bar]

129

103

burst pressure [bar]

517

414

310

248

207

160

103

Safety factor

4:1

3:1

Standard ferrule

XV04P3W

XV05P3W

XV06P3W

XV08P3W

XV10P3W

XV12P3W

XV16P3W

XV20P3W

Standard ferrule stainless steel

XP-PTFE-W04VA

XP-PTFE-W05VA

XP-PTFE-W06VA

XP-PTFE-W08VA

XP-PTFE-W10VA

XP-PTFE-W12VA

XP-PTFE-W16VA

XP-PTFE-W20VA

Weight [kg]

0,13

0,21

0,29

0,36

0,38

0,61

0,8

0,952

Outer Ø max. [mm]

11,6

13,5

15,9

19,7

23,3

26,8

33,4

41,3

Quantity

Product info

Technical data

Color inner tube:	white
Inner tube:	Convoluted, seamless extruded PTFE
MSHA-Approval:	no
Media:	media compatibility on request
Reinforcement:	1 stainless steel wire braid (AISI 304 / 1.4301)
Temperature range [°C]:	- 60 ° C to + 260 ° C; Resistance on request (technik@indunorm.de)
application:	Highly flexible delivery hose for applications in hydraulics and the use of aggressive and hot or cold liquids
max operating temperature [°C]:	+260
number of layers:	1

Benefit

Very high temperature range in conjunction with low bending radius. Can be used as a transfer (conveying) hose in the chemical industry (eg adhesive technology, solvent technology, fuel lines). Can be assembled with fittings of the universal program XV in steel or stainless steel.

Accessories

Fittings from the XV universal series (also available in stainless steel).

Practical tip

When using our special ferrules the usual masking of the dividing line with fabric tape can be dispensed. However, the ends should be secured during storage so that damage to the inner layer is prevented. By this method no danger to personnel is obtained.
