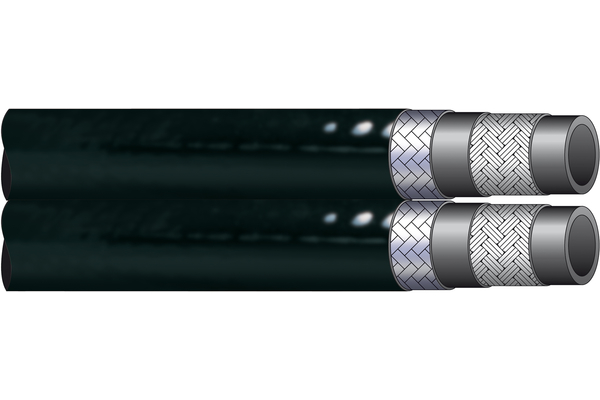

700 bar hose for hydraulic tools TP10HS-Z

Similar image
To accessories

Detail

Art. No.
TP10HS06Z
%
SALE
TP10HS06Z-RO
%
SALE
TP10HS06Z-GE
%
SALE
DN
06
06
06
Size
04
04
04
Inch
1/4
1/4
1/4
Outer Ø [mm]
12,7
12,7
12,7
Inner Ø [mm]
6,6
6,6
6,6
bending radius [mm]
35
35
35
working pressure [bar]
700
700
700
burst pressure [bar]
2800
2800
2800
Safety factor
4:1
4:1
4:1
Standard ferrule
XJ04HS
XJ04HS
XJ04HS
Standard ferrule stainless steel
XJ04HS
XJ04HS
XJ04HS
Weight [kg]
0,360
0,360
0,360
Static test pressure [bar]
1400
1400
1400
outer diameter tolerance minus [mm]
0,15
0,15
0,15
Vacuum [bar]
0,93 bar; 700 mm Hg|-13,5 psi; 27,5 inch Hg
0,93 bar; 700 mm Hg|-13,5 psi; 27,5 inch Hg
0,93 bar; 700 mm Hg|-13,5 psi; 27,5 inch Hg
outer diameter tolerance plus [mm]
0,15
0,15
0,15
Quantity
