TP10HS06Z-RO

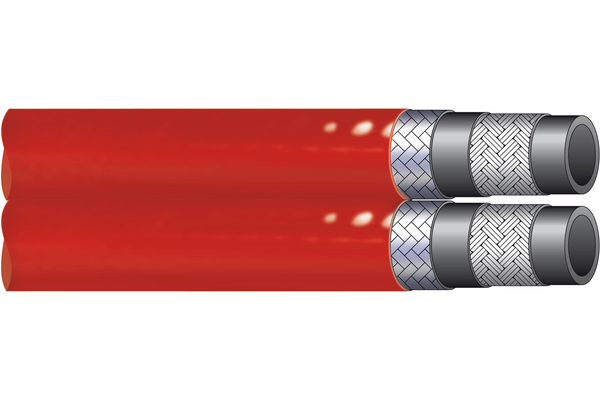

700 bar thermoplastic hose for hydraulic tools TP10HS-Z

Product info

• Technical data

  DN:	06
  Size:	04
  Inch:	1/4
  Outer Ø [mm]:	12,7
  Inner Ø [mm]:	6,6
  bending radius [mm]:	35
  working pressure [bar]:	700
  burst pressure [bar]:	2800
  Safety factor:	4:1
  Standard ferrule:	XJ04HS
  Standard ferrule stainless steel:	XJ04HS
  Weight [kg]:	0,360
  Static test pressure [bar]:	1400
  outer diameter tolerance minus [mm]:	0,15
  Vacuum [bar]:	0,93 bar; 700 mm Hg|-13,5 psi; 27,5 inch Hg
  outer diameter tolerance plus [mm]:	0,15
  number of layers:	1/2
