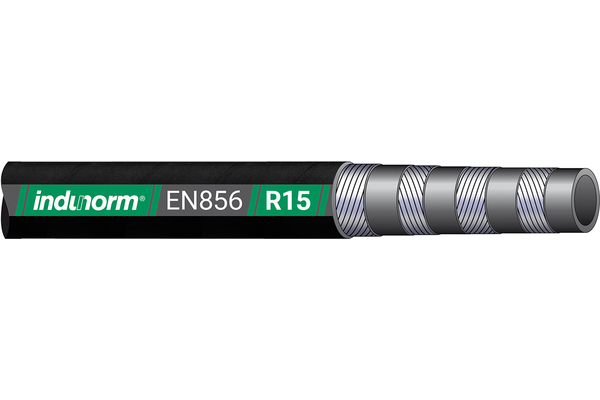

Spiral Hose R15 (SAE 100 R15)

High pressure hose for pulsating pressure, according to EN 856-R15. In combination with the PV hammer fittings from our multi-spiral program, ideal for use in your hammer applications in the construction industry.

To accessories

Detail

Art. No.

R15-20

R15-25

R15-32

R15-40

Size

Inch

3/4

1.1/4

1.1/2

Outer Ø [mm]

32,2

38,7

49,8

57,3

Inner Ø [mm]

19,0

25,0

32,0

38,0

bending radius [mm]

265

330

445

530

working pressure [bar]

420

burst pressure [bar]

1680

Safety factor

4:1

Standard ferrule

HV12

HV16

HVR20

HIR24

Weight [kg]

1,59

2,13

2,48

4,84

Static test pressure [bar]

840

Quantity

Product info

Technical data

Color cover:	black
Color inner tube:	black
Cover:	Synthetic rubber, wear resistant
Inner tube:	Synthetic rubber
MSHA-Approval:	no
Media:	Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
Norm/Standards:	SAE 100 R15
Reinforcement:	high tensile steel spirals
Temperature range [°C]:	- 40 ° C to + 120 ° C, water and water-based media up to max. + 70 ° C
application:	High pressure applications
max operating temperature [°C]:	+120°C
number of layers:	DN19-24 = 4, DN31-38 = 6

Benefit

Maximum safety is ensured by the Joint-Fit® safety system. Reproducible and verifiable assembly parameters ensure the ultimate safety.

Accessories

Fittings of the HI multispiral program. For optimum skiving results (exterior and interior), we offer you our skiveer SGM370-2 + accessories.

Practical tip

The use of the Z4 circular knife in your cutter ensures the highest cutting precision. For hammer use, we recommend using our PV Hammer fittings from the multispiral series HV. Currently available for DN19 to DN31."
