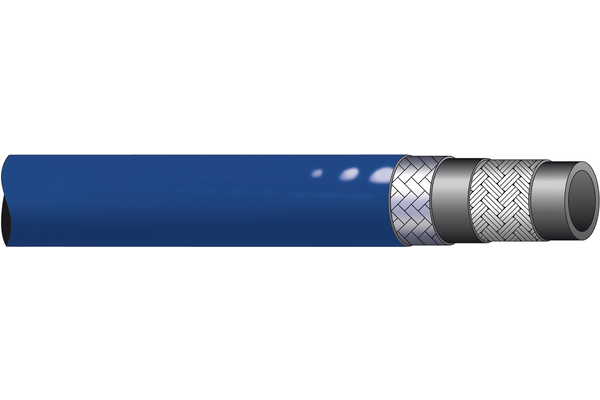

TP10HS06BL - 700 bar thermoplastic hose for hydraulic tools

Product info

DN:	06
Size:	04
Inch:	1/4
Outer Ø [mm]:	12,7
Inner Ø [mm]:	6,6
bending radius [mm]:	35
working pressure [bar]:	700
burst pressure [bar]:	2800
Safety factor:	4:1
Standard ferrule:	XJ04HS
Standard ferrule stainless steel:	XJ04HS
Weight [kg]:	0,179
Static test pressure [bar]:	1400
outer diameter tolerance minus [mm]:	0,15
Vacuum [bar]:	0,93 bar; 700 mm Hg\|-13,5 psi; 27,5 inch Hg
outer diameter tolerance plus [mm]:	0,15
Color cover:	black, yellow, blue or red
Color inner tube:	black
Cover:	Polyurethan
Inner tube:	Seamless extruded polyester tube (PEL)
MSHA-Approval:	no
Media:	water and water-based media up to max. + 70 ° C; Mineral oils and fluids based on phosphate ester-based hydraulic fluids
Note:	If different hose colours are required, please add corresponding letters to part no.: "RO" for red, "GE" for yellow or "BL" for blue
Reinforcement:	One or two braids of aramid fiber plus one braid of steel wire
Temperature range [°C]:	- 40 ° C to + 100 ° C, water and water-based media up to max. + 70 ° C; Mineral oils and fluids based on phosphate ester-based hydraulic oils
application:	hydraulic tools
max operating temperature [°C]:	+100°C
number of layers:	1/2

Benefit

"Low variation in length (<+ -1%) at operating pressure. Low volume expansion. Also available as TP10HS / NC version. NC = Non Conductive (electrically non-conductive) Colour: Orange. We manufacture thermoplastic hose assemblies in accordance to your specifications. On request, each hose assembly made by Indunorm Hydraulik is tested with the appropriate test pressure and confirmed by protocol."
